SF69減速機詳細信息

prevnext

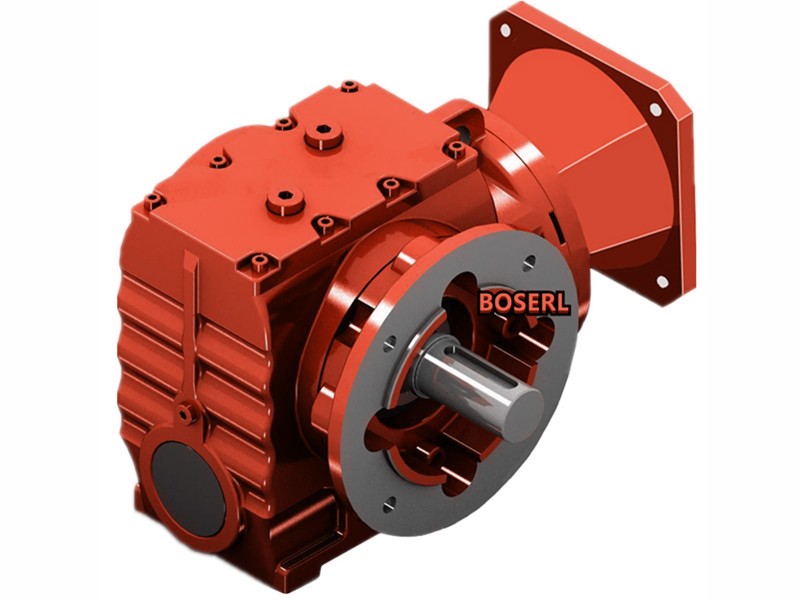

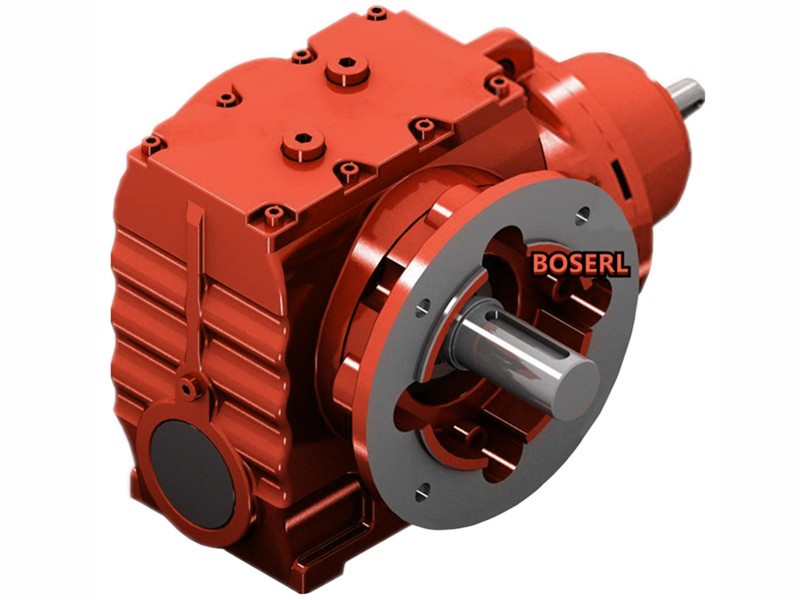

SF69減速機

訂購熱線:13360667204
  1. 詳細信息

SF69減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF69減速機選型樣本。

SF69-BB1.1KW-4P-65.63-M5-180°

SF:系列代號

69:減速機規格代號

BB:電機

1.1KW:電機功率

4P:電機級數

65.63:減速機傳動比

M5:減速機安裝位置

180°:接線盒位置


SF69減速機潤滑油型號:

SF69減速機推薦使用的潤滑油,其等級和粘度指標見下表:

ISO標準潤滑油

粘貼指標

環境溫度°C

減速機型號

MINERALOILCLP(cc)

ISOVG220

-10-+40

R系列、F系列、K系列減速機

ISOVG680

0-+40

S系列減速機

ISO標準潤滑油

粘貼指標

環境溫度°C

減速機型號

MINERALOILCLP(cc)

ISOVG100

-20-+25

R系列、F系列、K系列減速機

Synthetic fluid,clp pg

ISOVG220

-25-+80

R系列、F系列、K系列減速機

Synthetic fluid,CLP HC

ISOVG460

-30-+80

S系列減速機

SF69減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系:若無特殊規定,BOSERL公司發貨時會根據SF69減速機的安裝位置給驅動裝置加潤滑油,因此應在訂貨時指定安裝位置(M1…M6,參見“SF69減速機說明書中的安裝位置與訂貨說明”章節)。若之后對安裝位置需要改動,則加潤滑油必須與安裝位置相符(潤滑油加注量)。齒輪減速電機

SF69減速機潤滑油加注量,具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF69減速機選型樣本中列出了安裝位置從M1到M6SF69減速機相應的潤滑油加注標準,請自行下載查看。

SF69減速機特殊應用場合必須使用特殊潤滑油,比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。


SF69減速機使用說明:

SF69減速機注意事項:若未注入正確的SF69減速機油則可能造成潤滑油性能失效,可能造成財產損失;合成潤滑油不可能相互混用并不可與礦物潤滑油混用;礦物油用作標準的潤滑油,不能用于特殊行業。伺服電機蝸輪蝸桿減速機

SF69減速機提示事項:油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上,要參見SF69減速機說明書安裝位置章節中的內容。

SF69減速機的螺母:立式安裝SF69減速機輸出法蘭螺母規格M10;SF69減速機螺母/螺母擰緊扭矩強度等級10.9。

SF69減速機危險使用說明:驅動裝置意外啟動會造成擠傷,可能造成重傷或死亡;開始工作前,應先斷開減速電機的電源并且采取措施防止意外接通!

SF69減速機警告說明:由于SF69減速機發熱或SF69減速機油溫過高可能引起燙傷;對SF69減速機進行操作前先冷卻;擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機

SF69減速機型號:

XDSF67-Y0.18KW,XDSF67-Y0.25KW,XDSF67-Y0.37KW,XDSF67-Y0.55KW,XDSF67-Y0.75KW,XDSF67-Y1.1KW,XDSF67-Y1.5KW,XDSF67-Y100M4,XDSF67-Y112M4,XDSF67-Y132M4,XDSF67-Y2.2KW,XDSF67-Y3KW,XDSF67-Y4KW,XDSF67-Y5.5KW,XDSF67-Y63M4,XDSF67-Y71M4,XDSF67-Y80M4,XDSF67-Y90M4,XDSF67-YB100M4,XDSF67-YB112M4,XDSF67-YB132M4,XDSF67-YB63M4,XDSF67-YB71M4,XDSF67-YB80M4,XDSF67-YB90M4,XDSF67-YDP100M4,XDSF67-YDP112M4,XDSF67-YDP132M4,XDSF67-YDP63M4,XDSF67-YDP71M4,XDSF67-YDP80M4,XDSF67-YDP90M4,XDSF67-YE100M4,XDSF67-YE112M4,XDSF67-YE132M4,XDSF67-YE63M4,XDSF67-YE71M4,XDSF67-YE80M4,XDSF67-YE90M4,XDSF67-YEJ100M4,XDSF67-YEJ112M4,XDSF67-YEJ132M4,XDSF67-YEJ63M4,XDSF67-YEJ71M4,XDSF67-YEJ80M4,XDSF67-YEJ90M4,XDSF67-YEJB100M4,XDSF67-YEJB112M4,XDSF67-YEJB132M4,XDSF67-YEJB63M4,XDSF67-YEJB71M4,XDSF67-YEJB80M4,XDSF67-YEJB90M4,XDSF67-YP100M4,XDSF67-YP112M4,XDSF67-YP132M4,XDSF67-YP63M4,XDSF67-YP71M4,XDSF67-YP80M4,XDSF67-YP90M4,XDSF67-YPB100M4,XDSF67-YPB112M4,XDSF67-YPB132M4,XDSF67-YPB63M4,XDSF67-YPB71M4,XDSF67-YPB80M4,XDSF67-YPB90M4,XDSF67-YPE100M4,XDSF67-YPE112M4,XDSF67-YPE132M4,XDSF67-YPE63M4,XDSF67-YPE71M4,XDSF67-YPE80M4,XDSF67-YPE90M4,XDSF67-YS100M4,XDSF67-YS112M4,XDSF67-YS132M4,XDSF67-YS63M4,XDSF67-YS71M4,XDSF67-YS80M4,XDSF67-YS90M4,XDSF67-YVB100M4,XDSF67-YVB112M4,XDSF67-YVB132M4,XDSF67-YVB63M4,XDSF67-YVB71M4,XDSF67-YVB80M4,XDSF67-YVB90M4,XDSF67-YVP100M4,XDSF67-YVP112M4,XDSF67-YVP132M4,XDSF67-YVP63M4,XDSF67-YVP71M4,XDSF67-YVP80M4,XDSF67-YVP90M4,XDSF67-YVPEJ100M4,XDSF67-YVPEJ112M4,XDSF67-YVPEJ132M4,XDSF67-YVPEJ63M4,XDSF67-YVPEJ71M4,XDSF67-YVPEJ80M4,XDSF67-YVPEJ90M4,SWF67-Y0.18KW,SWF67-Y0.25KW,SWF67-Y0.37KW,SWF67-Y0.55KW,SWF67-Y0.75KW,SWF67-Y1.1KW,SWF67-Y1.5KW,SWF67-Y100M4,SWF67-Y112M4,SWF67-Y132M4,SWF67-Y2.2KW,SWF67-Y3KW,SWF67-Y4KW,SWF67-Y5.5KW,SWF67-Y63M4,SWF67-Y71M4,SWF67-Y80M4,SWF67-Y90M4,SWF67-YB100M4,SWF67-YB112M4,SWF67-YB132M4,SWF67-YB63M4,SWF67-YB71M4,SWF67-YB80M4,SWF67-YB90M4,SWF67-YDP100M4,SWF67-YDP112M4,SWF67-YDP132M4,SWF67-YDP63M4,SWF67-YDP71M4,SWF67-YDP80M4,SWF67-YDP90M4,SWF67-YE100M4,SWF67-YE112M4,SWF67-YE132M4,SWF67-YE63M4,SWF67-YE71M4,SWF67-YE80M4,SWF67-YE90M4,SWF67-YEJ100M4,SWF67-YEJ112M4,SWF67-YEJ132M4,SWF67-YEJ63M4,SWF67-YEJ71M4,SWF67-YEJ80M4,SWF67-YEJ90M4,SWF67-YEJB100M4,SWF67-YEJB112M4,SWF67-YEJB132M4,SWF67-YEJB63M4,SWF67-YEJB71M4,SWF67-YEJB80M4,SWF67-YEJB90M4,SWF67-YP100M4,SWF67-YP112M4,SWF67-YP132M4,SWF67-YP63M4,SWF67-YP71M4,SWF67-YP80M4,SWF67-YP90M4,SWF67-YPB100M4,SWF67-YPB112M4,SWF67-YPB132M4,SWF67-YPB63M4,SWF67-YPB71M4,SWF67-YPB80M4,SWF67-YPB90M4,SWF67-YPE100M4,SWF67-YPE112M4,SWF67-YPE132M4,SWF67-YPE63M4,SWF67-YPE71M4,SWF67-YPE80M4,SWF67-YPE90M4,SWF67-YS100M4,SWF67-YS112M4,SWF67-YS132M4,SWF67-YS63M4,SWF67-YS71M4,SWF67-YS80M4,SWF67-YS90M4,SWF67-YVB100M4,SWF67-YVB112M4,SWF67-YVB132M4,SWF67-YVB63M4,SWF67-YVB71M4,SWF67-YVB80M4,SWF67-YVB90M4,SWF67-YVP100M4,SWF67-YVP112M4,SWF67-YVP132M4,SWF67-YVP63M4,SWF67-YVP71M4,SWF67-YVP80M4,SWF67-YVP90M4,SWF67-YVPEJ100M4,SWF67-YVPEJ112M4,SWF67-YVPEJ132M4,SWF67-YVPEJ63M4,SWF67-YVPEJ71M4,SWF67-YVPEJ80M4,SWF67-YVPEJ90M4,JCSF67-Y0.18KW,JCSF67-Y0.25KW,JCSF67-Y0.37KW,JCSF67-Y0.55KW,JCSF67-Y0.75KW,JCSF67-Y1.1KW,JCSF67-Y1.5KW,JCSF67-Y100M4,JCSF67-Y112M4,JCSF67-Y132M4,JCSF67-Y2.2KW,JCSF67-Y3KW,JCSF67-Y4KW,JCSF67-Y5.5KW,JCSF67-Y63M4,JCSF67-Y71M4,JCSF67-Y80M4,JCSF67-Y90M4,JCSF67-YB100M4,JCSF67-YB112M4,JCSF67-YB132M4,JCSF67-YB63M4,JCSF67-YB71M4,JCSF67-YB80M4,JCSF67-YB90M4,JCSF67-YDP100M4,JCSF67-YDP112M4,JCSF67-YDP132M4,JCSF67-YDP63M4,JCSF67-YDP71M4,JCSF67-YDP80M4,JCSF67-YDP90M4,JCSF67-YE100M4,JCSF67-YE112M4,JCSF67-YE132M4,JCSF67-YE63M4,JCSF67-YE71M4,JCSF67-YE80M4,JCSF67-YE90M4,JCSF67-YEJ100M4,JCSF67-YEJ112M4,JCSF67-YEJ132M4,JCSF67-YEJ63M4,JCSF67-YEJ71M4,JCSF67-YEJ80M4,JCSF67-YEJ90M4,JCSF67-YEJB100M4,JCSF67-YEJB112M4,JCSF67-YEJB132M4,JCSF67-YEJB63M4,JCSF67-YEJB71M4,JCSF67-YEJB80M4,JCSF67-YEJB90M4,JCSF67-YP100M4,JCSF67-YP112M4,JCSF67-YP132M4,JCSF67-YP63M4,JCSF67-YP71M4,JCSF67-YP80M4,JCSF67-YP90M4,JCSF67-YPB100M4,JCSF67-YPB112M4,JCSF67-YPB132M4,JCSF67-YPB63M4,JCSF67-YPB71M4,JCSF67-YPB80M4,JCSF67-YPB90M4,JCSF67-YPE100M4,JCSF67-YPE112M4,JCSF67-YPE132M4,JCSF67-YPE63M4,JCSF67-YPE71M4,JCSF67-YPE80M4,JCSF67-YPE90M4,JCSF67-YS100M4,JCSF67-YS112M4,JCSF67-YS132M4,JCSF67-YS63M4,JCSF67-YS71M4,JCSF67-YS80M4,JCSF67-YS90M4,JCSF67-YVB100M4,JCSF67-YVB112M4,JCSF67-YVB132M4,JCSF67-YVB63M4,JCSF67-YVB71M4,JCSF67-YVB80M4,JCSF67-YVB90M4,JCSF67-YVP100M4,JCSF67-YVP112M4,JCSF67-YVP132M4,JCSF67-YVP63M4,JCSF67-YVP71M4,JCSF67-YVP80M4,JCSF67-YVP90M4,JCSF67-YVPEJ100M4,JCSF67-YVPEJ112M4,JCSF67-YVPEJ132M4,JCSF67-YVPEJ63M4,JCSF67-YVPEJ71M4,JCSF67-YVPEJ80M4,JCSF67-YVPEJ90M4,YQSF67-Y0.18KW,YQSF67-Y0.25KW,YQSF67-Y0.37KW,YQSF67-Y0.55KW,YQSF67-Y0.75KW,YQSF67-Y1.1KW,YQSF67-Y1.5KW,YQSF67-Y100M4,YQSF67-Y112M4,YQSF67-Y132M4,YQSF67-Y2.2KW,YQSF67-Y3KW,YQSF67-Y4KW,YQSF67-Y5.5KW,YQSF67-Y63M4,YQSF67-Y71M4,YQSF67-Y80M4,YQSF67-Y90M4,YQSF67-YB100M4,YQSF67-YB112M4,YQSF67-YB132M4,YQSF67-YB63M4,YQSF67-YB71M4,YQSF67-YB80M4,YQSF67-YB90M4,YQSF67-YDP100M4,YQSF67-YDP112M4,YQSF67-YDP132M4,YQSF67-YDP63M4,YQSF67-YDP71M4,YQSF67-YDP80M4,YQSF67-YDP90M4,YQSF67-YE100M4,YQSF67-YE112M4,YQSF67-YE132M4,YQSF67-YE63M4,YQSF67-YE71M4,YQSF67-YE80M4,YQSF67-YE90M4,YQSF67-YEJ100M4,YQSF67-YEJ112M4,YQSF67-YEJ132M4,YQSF67-YEJ63M4,YQSF67-YEJ71M4,YQSF67-YEJ80M4,YQSF67-YEJ90M4,YQSF67-YEJB100M4,YQSF67-YEJB112M4,YQSF67-YEJB132M4,YQSF67-YEJB63M4,YQSF67-YEJB71M4,YQSF67-YEJB80M4,YQSF67-YEJB90M4,YQSF67-YP100M4,YQSF67-YP112M4,YQSF67-YP132M4,YQSF67-YP63M4,YQSF67-YP71M4,YQSF67-YP80M4,YQSF67-YP90M4,YQSF67-YPB100M4,YQSF67-YPB112M4,YQSF67-YPB132M4,YQSF67-YPB63M4,YQSF67-YPB71M4,YQSF67-YPB80M4,YQSF67-YPB90M4,YQSF67-YPE100M4,YQSF67-YPE112M4,YQSF67-YPE132M4,YQSF67-YPE63M4,YQSF67-YPE71M4,YQSF67-YPE80M4,YQSF67-YPE90M4,YQSF67-YS100M4,YQSF67-YS112M4,YQSF67-YS132M4,YQSF67-YS63M4,YQSF67-YS71M4,YQSF67-YS80M4,YQSF67-YS90M4,YQSF67-YVB100M4,YQSF67-YVB112M4,YQSF67-YVB132M4,YQSF67-YVB63M4,YQSF67-YVB71M4,YQSF67-YVB80M4,YQSF67-YVB90M4,YQSF67-YVP100M4,YQSF67-YVP112M4,YQSF67-YVP132M4,YQSF67-YVP63M4,YQSF67-YVP71M4,YQSF67-YVP80M4,YQSF67-YVP90M4,YQSF67-YVPEJ100M4,YQSF67-YVPEJ112M4,YQSF67-YVPEJ132M4,YQSF67-YVPEJ63M4,YQSF67-YVPEJ71M4,YQSF67-YVPEJ80M4,YQSF67-YVPEJ90M4,SF69-Y0.18KW,SF69-Y0.25KW,SF69-Y0.37KW,SF69-Y0.55KW,SF69-Y0.75KW,SF69-Y1.1KW,SF69-Y1.5KW,SF69-Y100M4,SF69-Y112M4,SF69-Y132M4,SF69-Y2.2KW,SF69-Y3KW,SF69-Y4KW,SF69-Y5.5KW,SF69-Y63M4,SF69-Y71M4,SF69-Y80M4,SF69-Y90M4,SF69-YB100M4,SF69-YB112M4,SF69-YB132M4,SF69-YB63M4,SF69-YB71M4,SF69-YB80M4,SF69-YB90M4,SF69-YDP100M4,SF69-YDP112M4,SF69-YDP132M4,SF69-YDP63M4,SF69-YDP71M4,SF69-YDP80M4,SF69-YDP90M4,SF69-YE100M4,SF69-YE112M4,SF69-YE132M4,SF69-YE63M4,SF69-YE71M4,SF69-YE80M4,SF69-YE90M4,SF69-YEJ100M4,SF69-YEJ112M4,SF69-YEJ132M4,SF69-YEJ63M4,SF69-YEJ71M4,SF69-YEJ80M4,SF69-YEJ90M4,SF69-YEJB100M4,SF69-YEJB112M4,SF69-YEJB132M4,SF69-YEJB63M4,SF69-YEJB71M4,SF69-YEJB80M4,SF69-YEJB90M4,SF69-YP100M4,SF69-YP112M4,SF69-YP132M4,SF69-YP63M4,SF69-YP71M4,SF69-YP80M4,SF69-YP90M4,SF69-YPB100M4,SF69-YPB112M4,SF69-YPB132M4,SF69-YPB63M4,SF69-YPB71M4,SF69-YPB80M4,SF69-YPB90M4,SF69-YPE100M4,SF69-YPE112M4,SF69-YPE132M4,SF69-YPE63M4,SF69-YPE71M4,SF69-YPE80M4,SF69-YPE90M4,SF69-YS100M4,SF69-YS112M4,SF69-YS132M4,SF69-YS63M4,SF69-YS71M4,SF69-YS80M4,SF69-YS90M4,SF69-YVB100M4,SF69-YVB112M4,SF69-YVB132M4,SF69-YVB63M4,SF69-YVB71M4,SF69-YVB80M4,SF69-YVB90M4,SF69-YVP100M4,SF69-YVP112M4,SF69-YVP132M4,SF69-YVP63M4,SF69-YVP71M4,SF69-YVP80M4,SF69-YVP90M4,SF69-YVPEJ100M4,SF69-YVPEJ112M4,SF69-YVPEJ132M4,SF69-YVPEJ63M4,SF69-YVPEJ71M4,SF69-YVPEJ80M4,SF69-YVPEJ90M4。

SF69減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-sfxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:S69減速機

關鍵詞:帶伺服電機蝸輪蝸桿減速機一體機_蝸輪蝸桿減速機制造廠家_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_GSF系列減速機_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器

SF系列減速機型號:SF39減速機,SF49減速機,SF59減速機,SF69減速機,SF79減速機,SF89減速機,SF99齒輪減速電機

SF系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   SAF69減速機 SAF67減速機結構圖 SAF67減速機數模 SAF67減速機樣本 SAF67減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SF69減速機數模 點擊下載
SF69減速機樣本 點擊下載
