網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速電機 > KA系列齒輪減速電機

KA79減速機詳細信息

prevnext

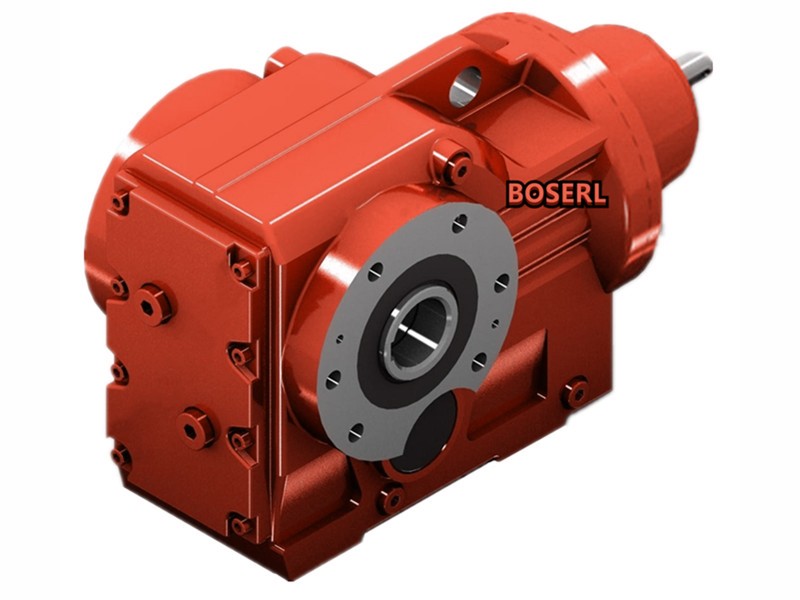

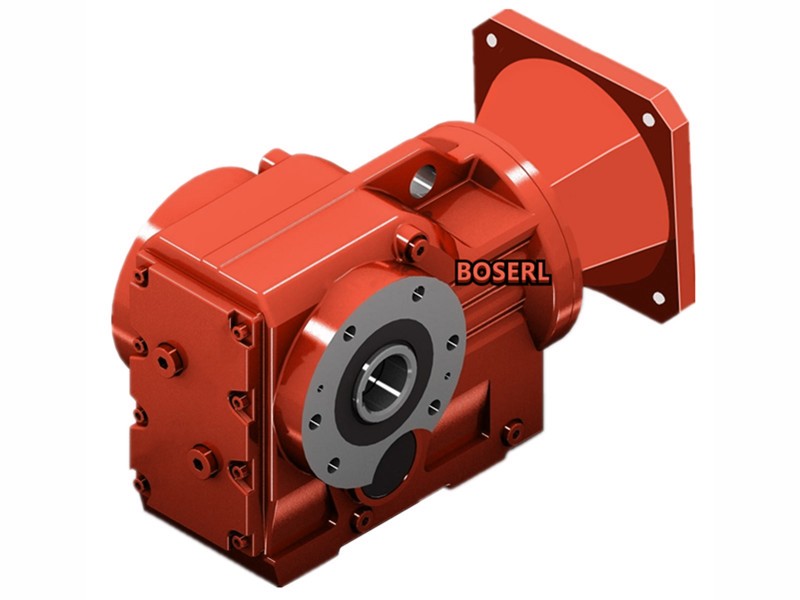

KA79減速機

訂購熱線:13360667204
  1. 詳細信息

KA79減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA79減速機選型樣本。

KA79-YE3-3KW-4P-78.07-M6-270°

KA:系列代號

79:減速機規格代號

YE3:電機

3KW:電機功率

4P:電機級數

78.07:減速機傳動比

M6:減速機安裝位置

270°:接線盒位置


KA79減速機空心軸扭矩臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA79減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

KA39減速機

4Xm10x25-8.8

48Nm

KA49減速機

4Xm10x30-8.8

48Nm

KA69減速機

4Xm12x35-8.8

86Nm

KA79減速機

4Xm16x40-8.8

210Nm

KA89減速機

4Xm16x45-8.8

210Nm

KA99減速機

4Xm20x50-8.8

410Nm

KA109減速機

4Xm24x60-8.8

710Nm

KA129減速機

4Xm36x60-8.8

2500Nm

KA159減速機

4Xm36x60-8.8

2500Nm

KA169減速機

4Xm30x60-8.8

1450Nm

KA189減速機

4Xm36x60-8.8

2500Nm

KA79減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA79減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機


KA79減速機型號:

WKA77-Y0.25SKA,WKA77-Y0.37SKA,WKA77-Y0.55SKA,WKA77-Y0.75SKA,WKA77-Y1.1SKA,WKA77-Y1.5SKA,WKA77-Y100M4,WKA77-Y112M4,WKA77-Y11SKA,WKA77-Y132M4,WKA77-Y160M4,WKA77-Y2.2SKA,WKA77-Y3SKA,WKA77-Y4SKA,WKA77-Y5.5SKA,WKA77-Y7.5SKA,WKA77-Y71M4,WKA77-Y80M4,WKA77-Y90M4,WKA77-YB100M4,WKA77-YB112M4,WKA77-YB132M4,WKA77-YB160M4,WKA77-YB71M4,WKA77-YB80M4,WKA77-YB90M4,WKA77-YDP100M4,WKA77-YDP112M4,WKA77-YDP132M4,WKA77-YDP160M4,WKA77-YDP71M4,WKA77-YDP80M4,WKA77-YDP90M4,WKA77-YE100M4,WKA77-YE112M4,WKA77-YE132M4,WKA77-YE160M4,WKA77-YE71M4,WKA77-YE80M4,WKA77-YE90M4,WKA77-YEJ100M4,WKA77-YEJ112M4,WKA77-YEJ132M4,WKA77-YEJ160M4,WKA77-YEJ71M4,WKA77-YEJ80M4,WKA77-YEJ90M4,WKA77-YEJB100M4,WKA77-YEJB112M4,WKA77-YEJB132M4,WKA77-YEJB160M4,WKA77-YEJB71M4,WKA77-YEJB80M4,WKA77-YEJB90M4,WKA77-YP100M4,WKA77-YP112M4,WKA77-YP132M4,WKA77-YP160M4,WKA77-YP71M4,WKA77-YP80M4,WKA77-YP90M4,WKA77-YPB100M4,WKA77-YPB112M4,WKA77-YPB132M4,WKA77-YPB160M4,WKA77-YPB71M4,WKA77-YPB80M4,WKA77-YPB90M4,WKA77-YPE100M4,WKA77-YPE112M4,WKA77-YPE132M4,WKA77-YPE160M4,WKA77-YPE71M4,WKA77-YPE80M4,WKA77-YPE90M4,WKA77-YS100M4,WKA77-YS112M4,WKA77-YS132M4,WKA77-YS160M4,WKA77-YS71M4,WKA77-YS80M4,WKA77-YS90M4,WKA77-YVB100M4,WKA77-YVB112M4,WKA77-YVB132M4,WKA77-YVB160M4,WKA77-YVB71M4,WKA77-YVB80M4,WKA77-YVB90M4,WKA77-YVP100M4,WKA77-YVP112M4,WKA77-YVP132M4,WKA77-YVP160M4,WKA77-YVP71M4,WKA77-YVP80M4,WKA77-YVP90M4,WKA77-YVPEJ100M4,WKA77-YVPEJ112M4,WKA77-YVPEJ132M4,WKA77-YVPEJ160M4,WKA77-YVPEJ71M4,WKA77-YVPEJ80M4,WKA77-YVPEJ90M4,AKA77-Y0.25SKA,AKA77-Y0.37SKA,AKA77-Y0.55SKA,AKA77-Y0.75SKA,AKA77-Y1.1SKA,AKA77-Y1.5SKA,AKA77-Y100M4,AKA77-Y112M4,AKA77-Y11SKA,AKA77-Y132M4,AKA77-Y160M4,AKA77-Y2.2SKA,AKA77-Y3SKA,AKA77-Y4SKA,AKA77-Y5.5SKA,AKA77-Y7.5SKA,AKA77-Y71M4,AKA77-Y80M4,AKA77-Y90M4,AKA77-YB100M4,AKA77-YB112M4,AKA77-YB132M4,AKA77-YB160M4,AKA77-YB71M4,AKA77-YB80M4,AKA77-YB90M4,AKA77-YDP100M4,AKA77-YDP112M4,AKA77-YDP132M4,AKA77-YDP160M4,AKA77-YDP71M4,AKA77-YDP80M4,AKA77-YDP90M4,AKA77-YE100M4,AKA77-YE112M4,AKA77-YE132M4,AKA77-YE160M4,AKA77-YE71M4,AKA77-YE80M4,AKA77-YE90M4,AKA77-YEJ100M4,AKA77-YEJ112M4,AKA77-YEJ132M4,AKA77-YEJ160M4,AKA77-YEJ71M4,AKA77-YEJ80M4,AKA77-YEJ90M4,AKA77-YEJB100M4,AKA77-YEJB112M4,AKA77-YEJB132M4,AKA77-YEJB160M4,AKA77-YEJB71M4,AKA77-YEJB80M4,AKA77-YEJB90M4,AKA77-YP100M4,AKA77-YP112M4,AKA77-YP132M4,AKA77-YP160M4,AKA77-YP71M4,AKA77-YP80M4,AKA77-YP90M4,AKA77-YPB100M4,AKA77-YPB112M4,AKA77-YPB132M4,AKA77-YPB160M4,AKA77-YPB71M4,AKA77-YPB80M4,AKA77-YPB90M4,AKA77-YPE100M4,AKA77-YPE112M4,AKA77-YPE132M4,AKA77-YPE160M4,AKA77-YPE71M4,AKA77-YPE80M4,AKA77-YPE90M4,AKA77-YS100M4,AKA77-YS112M4,AKA77-YS132M4,AKA77-YS160M4,AKA77-YS71M4,AKA77-YS80M4,AKA77-YS90M4,AKA77-YVB100M4,AKA77-YVB112M4,AKA77-YVB132M4,AKA77-YVB160M4,AKA77-YVB71M4,AKA77-YVB80M4,AKA77-YVB90M4,AKA77-YVP100M4,AKA77-YVP112M4,AKA77-YVP132M4,AKA77-YVP160M4,AKA77-YVP71M4,AKA77-YVP80M4,AKA77-YVP90M4,AKA77-YVPEJ100M4,AKA77-YVPEJ112M4,AKA77-YVPEJ132M4,AKA77-YVPEJ160M4,AKA77-YVPEJ71M4,AKA77-YVPEJ80M4,AKA77-YVPEJ90M4,NKA77-Y0.25SKA,NKA77-Y0.37SKA,NKA77-Y0.55SKA,NKA77-Y0.75SKA,NKA77-Y1.1SKA,NKA77-Y1.5SKA,NKA77-Y100M4,NKA77-Y112M4,NKA77-Y11SKA,NKA77-Y132M4,NKA77-Y160M4,NKA77-Y2.2SKA,NKA77-Y3SKA,NKA77-Y4SKA,NKA77-Y5.5SKA,NKA77-Y7.5SKA,NKA77-Y71M4,NKA77-Y80M4,NKA77-Y90M4,NKA77-YB100M4,NKA77-YB112M4,NKA77-YB132M4,NKA77-YB160M4,NKA77-YB71M4,NKA77-YB80M4,NKA77-YB90M4,NKA77-YDP100M4,NKA77-YDP112M4,NKA77-YDP132M4,NKA77-YDP160M4,NKA77-YDP71M4,NKA77-YDP80M4,NKA77-YDP90M4,NKA77-YE100M4,NKA77-YE112M4,NKA77-YE132M4,NKA77-YE160M4,NKA77-YE71M4,NKA77-YE80M4,NKA77-YE90M4,NKA77-YEJ100M4,NKA77-YEJ112M4,NKA77-YEJ132M4,NKA77-YEJ160M4,NKA77-YEJ71M4,NKA77-YEJ80M4,NKA77-YEJ90M4,NKA77-YEJB100M4,NKA77-YEJB112M4,NKA77-YEJB132M4,NKA77-YEJB160M4,NKA77-YEJB71M4,NKA77-YEJB80M4,NKA77-YEJB90M4,NKA77-YP100M4,NKA77-YP112M4,NKA77-YP132M4,NKA77-YP160M4,NKA77-YP71M4,NKA77-YP80M4,NKA77-YP90M4,NKA77-YPB100M4,NKA77-YPB112M4,NKA77-YPB132M4,NKA77-YPB160M4,NKA77-YPB71M4,NKA77-YPB80M4,NKA77-YPB90M4,NKA77-YPE100M4,NKA77-YPE112M4,NKA77-YPE132M4,NKA77-YPE160M4,NKA77-YPE71M4,NKA77-YPE80M4,NKA77-YPE90M4,NKA77-YS100M4,NKA77-YS112M4,NKA77-YS132M4,NKA77-YS160M4,NKA77-YS71M4,NKA77-YS80M4,NKA77-YS90M4,NKA77-YVB100M4,NKA77-YVB112M4,NKA77-YVB132M4,NKA77-YVB160M4,NKA77-YVB71M4,NKA77-YVB80M4,NKA77-YVB90M4,NKA77-YVP100M4,NKA77-YVP112M4,NKA77-YVP132M4,NKA77-YVP160M4,NKA77-YVP71M4,NKA77-YVP80M4,NKA77-YVP90M4,NKA77-YVPEJ100M4,NKA77-YVPEJ112M4,NKA77-YVPEJ132M4,NKA77-YVPEJ160M4,NKA77-YVPEJ71M4,NKA77-YVPEJ80M4,NKA77-YVPEJ90M4,SKA77-Y0.25SKA,SKA77-Y0.37SKA,SKA77-Y0.55SKA,SKA77-Y0.75SKA,SKA77-Y1.1SKA,SKA77-Y1.5SKA,SKA77-Y100M4,SKA77-Y112M4,SKA77-Y11SKA,SKA77-Y132M4,SKA77-Y160M4,SKA77-Y2.2SKA,SKA77-Y3SKA,SKA77-Y4SKA,SKA77-Y5.5SKA,SKA77-Y7.5SKA,SKA77-Y71M4,SKA77-Y80M4,SKA77-Y90M4,SKA77-YB100M4,SKA77-YB112M4,SKA77-YB132M4,SKA77-YB160M4,SKA77-YB71M4,SKA77-YB80M4,SKA77-YB90M4,SKA77-YDP100M4,SKA77-YDP112M4,SKA77-YDP132M4,SKA77-YDP160M4,SKA77-YDP71M4,SKA77-YDP80M4,SKA77-YDP90M4,SKA77-YE100M4,SKA77-YE112M4,SKA77-YE132M4,SKA77-YE160M4,SKA77-YE71M4,SKA77-YE80M4,SKA77-YE90M4,SKA77-YEJ100M4,SKA77-YEJ112M4,SKA77-YEJ132M4,SKA77-YEJ160M4,SKA77-YEJ71M4,SKA77-YEJ80M4,SKA77-YEJ90M4,SKA77-YEJB100M4,SKA77-YEJB112M4,SKA77-YEJB132M4,SKA77-YEJB160M4,SKA77-YEJB71M4,SKA77-YEJB80M4,SKA77-YEJB90M4,SKA77-YP100M4,SKA77-YP112M4,SKA77-YP132M4,SKA77-YP160M4,SKA77-YP71M4,SKA77-YP80M4,SKA77-YP90M4,SKA77-YPB100M4,SKA77-YPB112M4,SKA77-YPB132M4,SKA77-YPB160M4,SKA77-YPB71M4,SKA77-YPB80M4,SKA77-YPB90M4,SKA77-YPE100M4,SKA77-YPE112M4,SKA77-YPE132M4,SKA77-YPE160M4,SKA77-YPE71M4,SKA77-YPE80M4,SKA77-YPE90M4,SKA77-YS100M4,SKA77-YS112M4,SKA77-YS132M4,SKA77-YS160M4,SKA77-YS71M4,SKA77-YS80M4,SKA77-YS90M4,SKA77-YVB100M4,SKA77-YVB112M4,SKA77-YVB132M4,SKA77-YVB160M4,SKA77-YVB71M4,SKA77-YVB80M4,SKA77-YVB90M4,SKA77-YVP100M4,SKA77-YVP112M4,SKA77-YVP132M4,SKA77-YVP160M4,SKA77-YVP71M4,SKA77-YVP80M4,SKA77-YVP90M4,SKA77-YVPEJ100M4,SKA77-YVPEJ112M4,SKA77-YVPEJ132M4,SKA77-YVPEJ160M4,SKA77-YVPEJ71M4,SKA77-YVPEJ80M4,SKA77-YVPEJ90M4,GKA79-Y0.25SKA,GKA79-Y0.37SKA,GKA79-Y0.55SKA,GKA79-Y0.75SKA,GKA79-Y1.1SKA,GKA79-Y1.5SKA,GKA79-Y100M4,GKA79-Y112M4,GKA79-Y11SKA,GKA79-Y132M4,GKA79-Y160M4,GKA79-Y2.2SKA,GKA79-Y3SKA,GKA79-Y4SKA,GKA79-Y5.5SKA,GKA79-Y7.5SKA,GKA79-Y71M4,GKA79-Y80M4,GKA79-Y90M4,GKA79-YB100M4,GKA79-YB112M4,GKA79-YB132M4,GKA79-YB160M4,GKA79-YB71M4,GKA79-YB80M4,GKA79-YB90M4,GKA79-YDP100M4,GKA79-YDP112M4,GKA79-YDP132M4,GKA79-YDP160M4,GKA79-YDP71M4,GKA79-YDP80M4,GKA79-YDP90M4,GKA79-YE100M4,GKA79-YE112M4,GKA79-YE132M4,GKA79-YE160M4,GKA79-YE71M4,GKA79-YE80M4,GKA79-YE90M4,GKA79-YEJ100M4,GKA79-YEJ112M4,GKA79-YEJ132M4,GKA79-YEJ160M4,GKA79-YEJ71M4,GKA79-YEJ80M4,GKA79-YEJ90M4,GKA79-YEJB100M4,GKA79-YEJB112M4,GKA79-YEJB132M4,GKA79-YEJB160M4,GKA79-YEJB71M4,GKA79-YEJB80M4,GKA79-YEJB90M4,GKA79-YP100M4,GKA79-YP112M4,GKA79-YP132M4,GKA79-YP160M4,GKA79-YP71M4,GKA79-YP80M4,GKA79-YP90M4,GKA79-YPB100M4,GKA79-YPB112M4,GKA79-YPB132M4,GKA79-YPB160M4,GKA79-YPB71M4,GKA79-YPB80M4,GKA79-YPB90M4,GKA79-YPE100M4,GKA79-YPE112M4,GKA79-YPE132M4,GKA79-YPE160M4,GKA79-YPE71M4,GKA79-YPE80M4,GKA79-YPE90M4,GKA79-YS100M4,GKA79-YS112M4,GKA79-YS132M4,GKA79-YS160M4,GKA79-YS71M4,GKA79-YS80M4,GKA79-YS90M4,GKA79-YVB100M4,GKA79-YVB112M4,GKA79-YVB132M4,GKA79-YVB160M4,GKA79-YVB71M4,GKA79-YVB80M4,GKA79-YVB90M4,GKA79-YVP100M4,GKA79-YVP112M4,GKA79-YVP132M4,GKA79-YVP160M4,GKA79-YVP71M4,GKA79-YVP80M4,GKA79-YVP90M4,GKA79-YVPEJ100M4,GKA79-YVPEJ112M4,GKA79-YVPEJ132M4,GKA79-YVPEJ160M4,GKA79-YVPEJ71M4,GKA79-YVPEJ80M4,GKA79-YVPEJ90M4。

KA79減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-kaxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K79減速機

關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機

KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   KA79減速機 KA77減速機結構圖 KA77減速機數模 KA77減速機樣本 KA77減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA79減速機數模 點擊下載
KA79減速機樣本 點擊下載
