KA129減速機詳細信息

prevnext

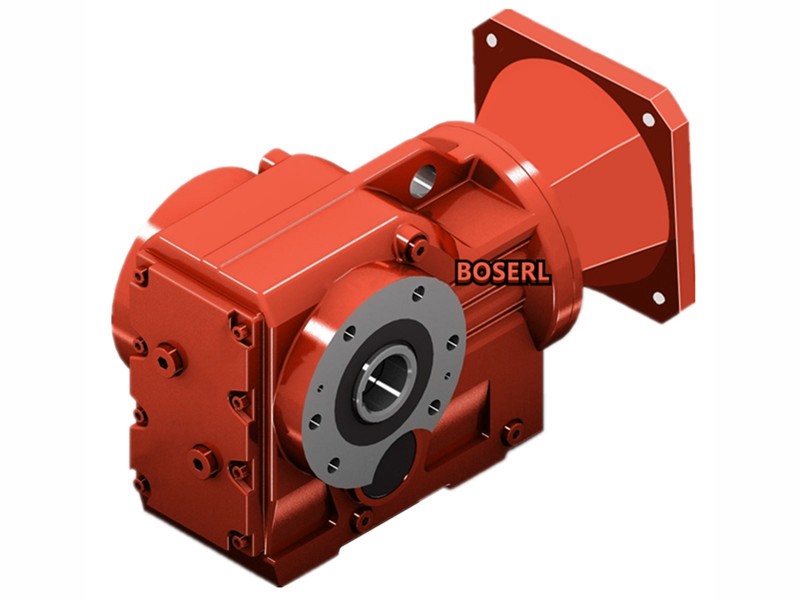

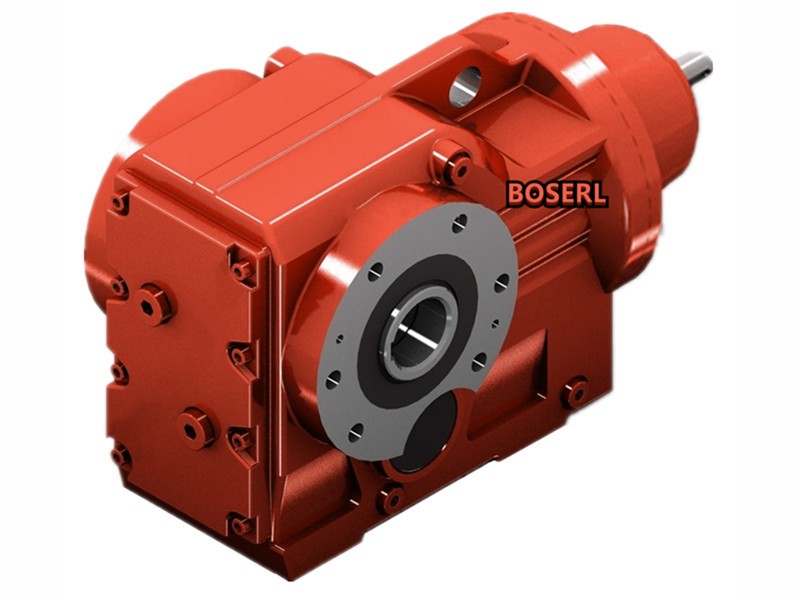

KA129減速機

訂購熱線:13360667204
  1. 詳細信息

KA129減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA129減速機選型樣本。

KA129-YE3-30KW-4P-62.6-M1-270°

KA:系列代號

129:減速機規格代號

YE3:電機

30KW:電機功率

4P:電機級數

62.6:減速機傳動比

M1:減速機安裝位置

270°:接線盒位置


KA129減速機空心軸扭矩臂安裝:

裝配時不得對扭矩支架用力過猛,固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA129減速機的扭矩臂安裝示意圖:兩面均安裝支架,連接面B與連接A對稱安裝。齒輪減速電機


減速機型號

螺栓

擰緊扭矩

KA39減速機

4Xm10x25-8.8

48Nm

KA49減速機

4Xm10x30-8.8

48Nm

KA69減速機

4Xm12x35-8.8

86Nm

KA79減速機

4Xm16x40-8.8

210Nm

KA89減速機

4Xm16x45-8.8

210Nm

KA99減速機

4Xm20x50-8.8

410Nm

KA109減速機

4Xm24x60-8.8

710Nm

KA129減速機

4Xm36x60-8.8

2500Nm

KA159減速機

4Xm36x60-8.8

2500Nm

KA169減速機

4Xm30x60-8.8

1450Nm

KA189減速機

4Xm36x60-8.8

2500Nm

KA129減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA129減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機


KA129減速機型號:

WKA127-Y112M4,WKA127-Y11SKA,WKA127-Y132M4,WKA127-Y15SKA,WKA127-Y160M4,WKA127-Y18.5SKA,WKA127-Y180M4,WKA127-Y200M4,WKA127-Y225M4,WKA127-Y22SKA,WKA127-Y250M4,WKA127-Y280M4,WKA127-Y30SKA,WKA127-Y37SKA,WKA127-Y45SKA,WKA127-Y4SKA,WKA127-Y5.5SKA,WKA127-Y55SKA,WKA127-Y7.5SKA,WKA127-Y75SKA,WKA127-YB112M4,WKA127-YB132M4,WKA127-YB160M4,WKA127-YB180M4,WKA127-YB200M4,WKA127-YB225M4,WKA127-YB250M4,WKA127-YB280M4,WKA127-YDP112M4,WKA127-YDP132M4,WKA127-YDP160M4,WKA127-YDP180M4,WKA127-YDP200M4,WKA127-YDP225M4,WKA127-YDP250M4,WKA127-YDP280M4,WKA127-YE112M4,WKA127-YE132M4,WKA127-YE160M4,WKA127-YE180M4,WKA127-YE200M4,WKA127-YE225M4,WKA127-YE250M4,WKA127-YE280M4,WKA127-YEJ112M4,WKA127-YEJ132M4,WKA127-YEJ160M4,WKA127-YEJ180M4,WKA127-YEJ200M4,WKA127-YEJ225M4,WKA127-YEJ250M4,WKA127-YEJ280M4,WKA127-YEJB112M4,WKA127-YEJB132M4,WKA127-YEJB160M4,WKA127-YEJB180M4,WKA127-YEJB200M4,WKA127-YEJB225M4,WKA127-YEJB250M4,WKA127-YEJB280M4,WKA127-YP112M4,WKA127-YP132M4,WKA127-YP160M4,WKA127-YP180M4,WKA127-YP200M4,WKA127-YP225M4,WKA127-YP250M4,WKA127-YP280M4,WKA127-YPB112M4,WKA127-YPB132M4,WKA127-YPB160M4,WKA127-YPB180M4,WKA127-YPB200M4,WKA127-YPB225M4,WKA127-YPB250M4,WKA127-YPB280M4,WKA127-YPE112M4,WKA127-YPE132M4,WKA127-YPE160M4,WKA127-YPE180M4,WKA127-YPE200M4,WKA127-YPE225M4,WKA127-YPE250M4,WKA127-YPE280M4,WKA127-YS112M4,WKA127-YS132M4,WKA127-YS160M4,WKA127-YS180M4,WKA127-YS200M4,WKA127-YS225M4,WKA127-YS250M4,WKA127-YS280M4,WKA127-YVB112M4,WKA127-YVB132M4,WKA127-YVB160M4,WKA127-YVB180M4,WKA127-YVB200M4,WKA127-YVB225M4,WKA127-YVB250M4,WKA127-YVB280M4,WKA127-YVP112M4,WKA127-YVP132M4,WKA127-YVP160M4,WKA127-YVP180M4,WKA127-YVP200M4,WKA127-YVP225M4,WKA127-YVP250M4,WKA127-YVP280M4,WKA127-YVPEJ112M4,WKA127-YVPEJ132M4,WKA127-YVPEJ160M4,WKA127-YVPEJ180M4,WKA127-YVPEJ200M4,WKA127-YVPEJ225M4,WKA127-YVPEJ250M4,WKA127-YVPEJ280M4,AKA127-Y112M4,AKA127-Y11SKA,AKA127-Y132M4,AKA127-Y15SKA,AKA127-Y160M4,AKA127-Y18.5SKA,AKA127-Y180M4,AKA127-Y200M4,AKA127-Y225M4,AKA127-Y22SKA,AKA127-Y250M4,AKA127-Y280M4,AKA127-Y30SKA,AKA127-Y37SKA,AKA127-Y45SKA,AKA127-Y4SKA,AKA127-Y5.5SKA,AKA127-Y55SKA,AKA127-Y7.5SKA,AKA127-Y75SKA,AKA127-YB112M4,AKA127-YB132M4,AKA127-YB160M4,AKA127-YB180M4,AKA127-YB200M4,AKA127-YB225M4,AKA127-YB250M4,AKA127-YB280M4,AKA127-YDP112M4,AKA127-YDP132M4,AKA127-YDP160M4,AKA127-YDP180M4,AKA127-YDP200M4,AKA127-YDP225M4,AKA127-YDP250M4,AKA127-YDP280M4,AKA127-YE112M4,AKA127-YE132M4,AKA127-YE160M4,AKA127-YE180M4,AKA127-YE200M4,AKA127-YE225M4,AKA127-YE250M4,AKA127-YE280M4,AKA127-YEJ112M4,AKA127-YEJ132M4,AKA127-YEJ160M4,AKA127-YEJ180M4,AKA127-YEJ200M4,AKA127-YEJ225M4,AKA127-YEJ250M4,AKA127-YEJ280M4,AKA127-YEJB112M4,AKA127-YEJB132M4,AKA127-YEJB160M4,AKA127-YEJB180M4,AKA127-YEJB200M4,AKA127-YEJB225M4,AKA127-YEJB250M4,AKA127-YEJB280M4,AKA127-YP112M4,AKA127-YP132M4,AKA127-YP160M4,AKA127-YP180M4,AKA127-YP200M4,AKA127-YP225M4,AKA127-YP250M4,AKA127-YP280M4,AKA127-YPB112M4,AKA127-YPB132M4,AKA127-YPB160M4,AKA127-YPB180M4,AKA127-YPB200M4,AKA127-YPB225M4,AKA127-YPB250M4,AKA127-YPB280M4,AKA127-YPE112M4,AKA127-YPE132M4,AKA127-YPE160M4,AKA127-YPE180M4,AKA127-YPE200M4,AKA127-YPE225M4,AKA127-YPE250M4,AKA127-YPE280M4,AKA127-YS112M4,AKA127-YS132M4,AKA127-YS160M4,AKA127-YS180M4,AKA127-YS200M4,AKA127-YS225M4,AKA127-YS250M4,AKA127-YS280M4,AKA127-YVB112M4,AKA127-YVB132M4,AKA127-YVB160M4,AKA127-YVB180M4,AKA127-YVB200M4,AKA127-YVB225M4,AKA127-YVB250M4,AKA127-YVB280M4,AKA127-YVP112M4,AKA127-YVP132M4,AKA127-YVP160M4,AKA127-YVP180M4,AKA127-YVP200M4,AKA127-YVP225M4,AKA127-YVP250M4,AKA127-YVP280M4,AKA127-YVPEJ112M4,AKA127-YVPEJ132M4,AKA127-YVPEJ160M4,AKA127-YVPEJ180M4,AKA127-YVPEJ200M4,AKA127-YVPEJ225M4,AKA127-YVPEJ250M4,AKA127-YVPEJ280M4,NKA127-Y112M4,NKA127-Y11SKA,NKA127-Y132M4,NKA127-Y15SKA,NKA127-Y160M4,NKA127-Y18.5SKA,NKA127-Y180M4,NKA127-Y200M4,NKA127-Y225M4,NKA127-Y22SKA,NKA127-Y250M4,NKA127-Y280M4,NKA127-Y30SKA,NKA127-Y37SKA,NKA127-Y45SKA,NKA127-Y4SKA,NKA127-Y5.5SKA,NKA127-Y55SKA,NKA127-Y7.5SKA,NKA127-Y75SKA,NKA127-YB112M4,NKA127-YB132M4,NKA127-YB160M4,NKA127-YB180M4,NKA127-YB200M4,NKA127-YB225M4,NKA127-YB250M4,NKA127-YB280M4,NKA127-YDP112M4,NKA127-YDP132M4,NKA127-YDP160M4,NKA127-YDP180M4,NKA127-YDP200M4,NKA127-YDP225M4,NKA127-YDP250M4,NKA127-YDP280M4,NKA127-YE112M4,NKA127-YE132M4,NKA127-YE160M4,NKA127-YE180M4,NKA127-YE200M4,NKA127-YE225M4,NKA127-YE250M4,NKA127-YE280M4,NKA127-YEJ112M4,NKA127-YEJ132M4,NKA127-YEJ160M4,NKA127-YEJ180M4,NKA127-YEJ200M4,NKA127-YEJ225M4,NKA127-YEJ250M4,NKA127-YEJ280M4,NKA127-YEJB112M4,NKA127-YEJB132M4,NKA127-YEJB160M4,NKA127-YEJB180M4,NKA127-YEJB200M4,NKA127-YEJB225M4,NKA127-YEJB250M4,NKA127-YEJB280M4,NKA127-YP112M4,NKA127-YP132M4,NKA127-YP160M4,NKA127-YP180M4,NKA127-YP200M4,NKA127-YP225M4,NKA127-YP250M4,NKA127-YP280M4,NKA127-YPB112M4,NKA127-YPB132M4,NKA127-YPB160M4,NKA127-YPB180M4,NKA127-YPB200M4,NKA127-YPB225M4,NKA127-YPB250M4,NKA127-YPB280M4,NKA127-YPE112M4,NKA127-YPE132M4,NKA127-YPE160M4,NKA127-YPE180M4,NKA127-YPE200M4,NKA127-YPE225M4,NKA127-YPE250M4,NKA127-YPE280M4,NKA127-YS112M4,NKA127-YS132M4,NKA127-YS160M4,NKA127-YS180M4,NKA127-YS200M4,NKA127-YS225M4,NKA127-YS250M4,NKA127-YS280M4,NKA127-YVB112M4,NKA127-YVB132M4,NKA127-YVB160M4,NKA127-YVB180M4,NKA127-YVB200M4,NKA127-YVB225M4,NKA127-YVB250M4,NKA127-YVB280M4,NKA127-YVP112M4,NKA127-YVP132M4,NKA127-YVP160M4,NKA127-YVP180M4,NKA127-YVP200M4,NKA127-YVP225M4,NKA127-YVP250M4,NKA127-YVP280M4,NKA127-YVPEJ112M4,NKA127-YVPEJ132M4,NKA127-YVPEJ160M4,NKA127-YVPEJ180M4,NKA127-YVPEJ200M4,NKA127-YVPEJ225M4,NKA127-YVPEJ250M4,NKA127-YVPEJ280M4,SKA127-Y112M4,SKA127-Y11SKA,SKA127-Y132M4,SKA127-Y15SKA,SKA127-Y160M4,SKA127-Y18.5SKA,SKA127-Y180M4,SKA127-Y200M4,SKA127-Y225M4,SKA127-Y22SKA,SKA127-Y250M4,SKA127-Y280M4,SKA127-Y30SKA,SKA127-Y37SKA,SKA127-Y45SKA,SKA127-Y4SKA,SKA127-Y5.5SKA,SKA127-Y55SKA,SKA127-Y7.5SKA,SKA127-Y75SKA,SKA127-YB112M4,SKA127-YB132M4,SKA127-YB160M4,SKA127-YB180M4,SKA127-YB200M4,SKA127-YB225M4,SKA127-YB250M4,SKA127-YB280M4,SKA127-YDP112M4,SKA127-YDP132M4,SKA127-YDP160M4,SKA127-YDP180M4,SKA127-YDP200M4,SKA127-YDP225M4,SKA127-YDP250M4,SKA127-YDP280M4,SKA127-YE112M4,SKA127-YE132M4,SKA127-YE160M4,SKA127-YE180M4,SKA127-YE200M4,SKA127-YE225M4,SKA127-YE250M4,SKA127-YE280M4,SKA127-YEJ112M4,SKA127-YEJ132M4,SKA127-YEJ160M4,SKA127-YEJ180M4,SKA127-YEJ200M4,SKA127-YEJ225M4,SKA127-YEJ250M4,SKA127-YEJ280M4,SKA127-YEJB112M4,SKA127-YEJB132M4,SKA127-YEJB160M4,SKA127-YEJB180M4,SKA127-YEJB200M4,SKA127-YEJB225M4,SKA127-YEJB250M4,SKA127-YEJB280M4,SKA127-YP112M4,SKA127-YP132M4,SKA127-YP160M4,SKA127-YP180M4,SKA127-YP200M4,SKA127-YP225M4,SKA127-YP250M4,SKA127-YP280M4,SKA127-YPB112M4,SKA127-YPB132M4,SKA127-YPB160M4,SKA127-YPB180M4,SKA127-YPB200M4,SKA127-YPB225M4,SKA127-YPB250M4,SKA127-YPB280M4,SKA127-YPE112M4,SKA127-YPE132M4,SKA127-YPE160M4,SKA127-YPE180M4,SKA127-YPE200M4,SKA127-YPE225M4,SKA127-YPE250M4,SKA127-YPE280M4,SKA127-YS112M4,SKA127-YS132M4,SKA127-YS160M4,SKA127-YS180M4,SKA127-YS200M4,SKA127-YS225M4,SKA127-YS250M4,SKA127-YS280M4,SKA127-YVB112M4,SKA127-YVB132M4,SKA127-YVB160M4,SKA127-YVB180M4,SKA127-YVB200M4,SKA127-YVB225M4,SKA127-YVB250M4,SKA127-YVB280M4,SKA127-YVP112M4,SKA127-YVP132M4,SKA127-YVP160M4,SKA127-YVP180M4,SKA127-YVP200M4,SKA127-YVP225M4,SKA127-YVP250M4,SKA127-YVP280M4,SKA127-YVPEJ112M4,SKA127-YVPEJ132M4,SKA127-YVPEJ160M4,SKA127-YVPEJ180M4,SKA127-YVPEJ200M4,SKA127-YVPEJ225M4,SKA127-YVPEJ250M4,SKA127-YVPEJ280M4,GKA129-Y112M4,GKA129-Y11SKA,GKA129-Y132M4,GKA129-Y15SKA,GKA129-Y160M4,GKA129-Y18.5SKA,GKA129-Y180M4,GKA129-Y200M4,GKA129-Y225M4,GKA129-Y22SKA,GKA129-Y250M4,GKA129-Y280M4,GKA129-Y30SKA,GKA129-Y37SKA,GKA129-Y45SKA,GKA129-Y4SKA,GKA129-Y5.5SKA,GKA129-Y55SKA,GKA129-Y7.5SKA,GKA129-Y75SKA,GKA129-YB112M4,GKA129-YB132M4,GKA129-YB160M4,GKA129-YB180M4,GKA129-YB200M4,GKA129-YB225M4,GKA129-YB250M4,GKA129-YB280M4,GKA129-YDP112M4,GKA129-YDP132M4,GKA129-YDP160M4,GKA129-YDP180M4,GKA129-YDP200M4,GKA129-YDP225M4,GKA129-YDP250M4,GKA129-YDP280M4,GKA129-YE112M4,GKA129-YE132M4,GKA129-YE160M4,GKA129-YE180M4,GKA129-YE200M4,GKA129-YE225M4,GKA129-YE250M4,GKA129-YE280M4,GKA129-YEJ112M4,GKA129-YEJ132M4,GKA129-YEJ160M4,GKA129-YEJ180M4,GKA129-YEJ200M4,GKA129-YEJ225M4,GKA129-YEJ250M4,GKA129-YEJ280M4,GKA129-YEJB112M4,GKA129-YEJB132M4,GKA129-YEJB160M4,GKA129-YEJB180M4,GKA129-YEJB200M4,GKA129-YEJB225M4,GKA129-YEJB250M4,GKA129-YEJB280M4,GKA129-YP112M4,GKA129-YP132M4,GKA129-YP160M4,GKA129-YP180M4,GKA129-YP200M4,GKA129-YP225M4,GKA129-YP250M4,GKA129-YP280M4,GKA129-YPB112M4,GKA129-YPB132M4,GKA129-YPB160M4,GKA129-YPB180M4,GKA129-YPB200M4,GKA129-YPB225M4,GKA129-YPB250M4,GKA129-YPB280M4,GKA129-YPE112M4,GKA129-YPE132M4,GKA129-YPE160M4,GKA129-YPE180M4,GKA129-YPE200M4,GKA129-YPE225M4,GKA129-YPE250M4,GKA129-YPE280M4,GKA129-YS112M4,GKA129-YS132M4,GKA129-YS160M4,GKA129-YS180M4,GKA129-YS200M4,GKA129-YS225M4,GKA129-YS250M4,GKA129-YS280M4,GKA129-YVB112M4,GKA129-YVB132M4,GKA129-YVB160M4,GKA129-YVB180M4,GKA129-YVB200M4,GKA129-YVB225M4,GKA129-YVB250M4,GKA129-YVB280M4,GKA129-YVP112M4,GKA129-YVP132M4,GKA129-YVP160M4,GKA129-YVP180M4,GKA129-YVP200M4,GKA129-YVP225M4,GKA129-YVP250M4,GKA129-YVP280M4,GKA129-YVPEJ112M4,GKA129-YVPEJ132M4,GKA129-YVPEJ160M4,GKA129-YVPEJ180M4,GKA129-YVPEJ200M4,GKA129-YVPEJ225M4,GKA129-YVPEJ250M4,GKA129-YVPEJ280M4。

KA129減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-kaxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:K129減速機

關鍵詞:直角中空減速機帶電機一體化_空心軸減速機_中孔輸出減速機_通孔減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器

KA系列齒輪減速電機型號:KA39減速機,KA49減速機,KA59減速機,KA69減速機,KA79減速機,KA89減速機,KA99減速機,KA109減速機,KA129減速機,KA159減速機,KA169減速機,KA189減速機

KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:   KA129減速機 KA127減速機結構圖 KA127減速機數模 KA127減速機樣本 KA127減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA129減速機數模 點擊下載
KA129減速機樣本 點擊下載
