網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速電機 > FA系列齒輪減速電機

FA69減速機詳細信息

prevnext

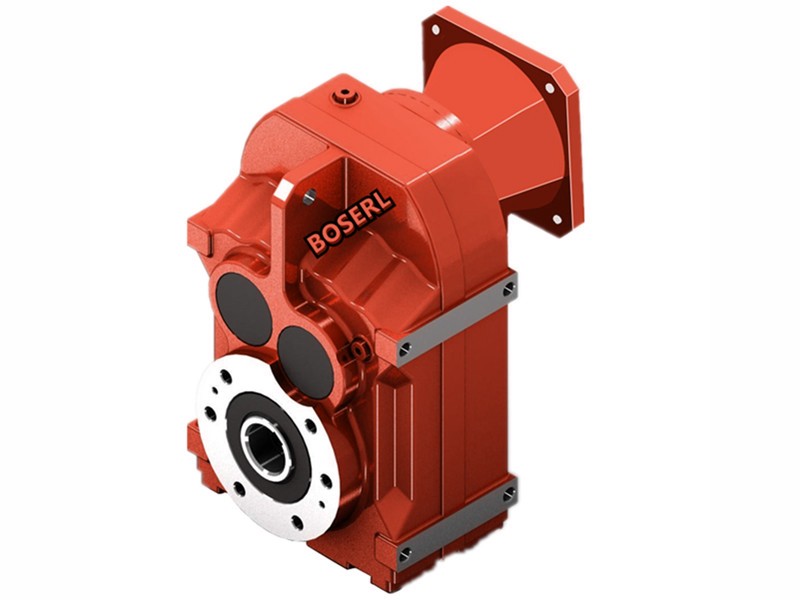

FA69減速機

訂購熱線:13360667204
  1. 詳細信息

FA69減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F69減速機選型樣本。

FA69-YP3KW-4P-20.90-M4-270°

FA:系列代號

69:減速機規格代號

YP:電機

3KW:電機功率

4P:電機級數

20.90:減速機傳動比

M4:減速機安裝位置

270°:接線盒位置


FA69減速機扭力臂安裝:

請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA69減速機的扭力臂安裝示意圖:齒輪減速電機



減速機型號

直 徑

a[mm]

橡膠緩沖塊

內徑b[mm]

長   度

(未張緊)d[mm]

墊片寬度

c[mm]

△L(張緊)

[mm]

FA39減速機

40

12.5

20

5

1

FA49減速機

40

12.5

20

5

1.5

FA59減速機

40

12.5

20

5

1.5

FA69減速機

40

12.5

20

5

1.5

FA79減速機

60

21

30

10

1.5

FA89減速機

60

21

30

10

1.5

FA99減速機

80

25

40

12

2

FA109減速機

80

25

40

12

2

FA129減速機

100

32

60

15

2

FA159減速機

120

32

60

15

2

FA69減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA69減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機


FA69減速機型號:

WFA67-Y0.18KW,WFA67-Y0.25KW,WFA67-Y0.37KW,WFA67-Y0.55KW,WFA67-Y0.75KW,WFA67-Y1.1KW,WFA67-Y1.5KW,WFA67-Y100M4,WFA67-Y112M4,WFA67-Y132M4,WFA67-Y2.2KW,WFA67-Y3KW,WFA67-Y4KW,WFA67-Y5.5KW,WFA67-Y63M4,WFA67-Y71M4,WFA67-Y80M4,WFA67-Y90M4,WFA67-YB100M4,WFA67-YB112M4,WFA67-YB132M4,WFA67-YB63M4,WFA67-YB71M4,WFA67-YB80M4,WFA67-YB90M4,WFA67-YDP100M4,WFA67-YDP112M4,WFA67-YDP132M4,WFA67-YDP63M4,WFA67-YDP71M4,WFA67-YDP80M4,WFA67-YDP90M4,WFA67-YE100M4,WFA67-YE112M4,WFA67-YE132M4,WFA67-YE63M4,WFA67-YE71M4,WFA67-YE80M4,WFA67-YE90M4,WFA67-YEJ100M4,WFA67-YEJ112M4,WFA67-YEJ132M4,WFA67-YEJ63M4,WFA67-YEJ71M4,WFA67-YEJ80M4,WFA67-YEJ90M4,WFA67-YEJB100M4,WFA67-YEJB112M4,WFA67-YEJB132M4,WFA67-YEJB63M4,WFA67-YEJB71M4,WFA67-YEJB80M4,WFA67-YEJB90M4,WFA67-YP100M4,WFA67-YP112M4,WFA67-YP132M4,WFA67-YP63M4,WFA67-YP71M4,WFA67-YP80M4,WFA67-YP90M4,WFA67-YPB100M4,WFA67-YPB112M4,WFA67-YPB132M4,WFA67-YPB63M4,WFA67-YPB71M4,WFA67-YPB80M4,WFA67-YPB90M4,WFA67-YPE100M4,WFA67-YPE112M4,WFA67-YPE132M4,WFA67-YPE63M4,WFA67-YPE71M4,WFA67-YPE80M4,WFA67-YPE90M4,WFA67-YS100M4,WFA67-YS112M4,WFA67-YS132M4,WFA67-YS63M4,WFA67-YS71M4,WFA67-YS80M4,WFA67-YS90M4,WFA67-YVB100M4,WFA67-YVB112M4,WFA67-YVB132M4,WFA67-YVB63M4,WFA67-YVB71M4,WFA67-YVB80M4,WFA67-YVB90M4,WFA67-YVP100M4,WFA67-YVP112M4,WFA67-YVP132M4,WFA67-YVP63M4,WFA67-YVP71M4,WFA67-YVP80M4,WFA67-YVP90M4,WFA67-YVPEJ100M4,WFA67-YVPEJ112M4,WFA67-YVPEJ132M4,WFA67-YVPEJ63M4,WFA67-YVPEJ71M4,WFA67-YVPEJ80M4,WFA67-YVPEJ90M4,SFA67-Y0.18KW,SFA67-Y0.25KW,SFA67-Y0.37KW,SFA67-Y0.55KW,SFA67-Y0.75KW,SFA67-Y1.1KW,SFA67-Y1.5KW,SFA67-Y100M4,SFA67-Y112M4,SFA67-Y132M4,SFA67-Y2.2KW,SFA67-Y3KW,SFA67-Y4KW,SFA67-Y5.5KW,SFA67-Y63M4,SFA67-Y71M4,SFA67-Y80M4,SFA67-Y90M4,SFA67-YB100M4,SFA67-YB112M4,SFA67-YB132M4,SFA67-YB63M4,SFA67-YB71M4,SFA67-YB80M4,SFA67-YB90M4,SFA67-YDP100M4,SFA67-YDP112M4,SFA67-YDP132M4,SFA67-YDP63M4,SFA67-YDP71M4,SFA67-YDP80M4,SFA67-YDP90M4,SFA67-YE100M4,SFA67-YE112M4,SFA67-YE132M4,SFA67-YE63M4,SFA67-YE71M4,SFA67-YE80M4,SFA67-YE90M4,SFA67-YEJ100M4,SFA67-YEJ112M4,SFA67-YEJ132M4,SFA67-YEJ63M4,SFA67-YEJ71M4,SFA67-YEJ80M4,SFA67-YEJ90M4,SFA67-YEJB100M4,SFA67-YEJB112M4,SFA67-YEJB132M4,SFA67-YEJB63M4,SFA67-YEJB71M4,SFA67-YEJB80M4,SFA67-YEJB90M4,SFA67-YP100M4,SFA67-YP112M4,SFA67-YP132M4,SFA67-YP63M4,SFA67-YP71M4,SFA67-YP80M4,SFA67-YP90M4,SFA67-YPB100M4,SFA67-YPB112M4,SFA67-YPB132M4,SFA67-YPB63M4,SFA67-YPB71M4,SFA67-YPB80M4,SFA67-YPB90M4,SFA67-YPE100M4,SFA67-YPE112M4,SFA67-YPE132M4,SFA67-YPE63M4,SFA67-YPE71M4,SFA67-YPE80M4,SFA67-YPE90M4,SFA67-YS100M4,SFA67-YS112M4,SFA67-YS132M4,SFA67-YS63M4,SFA67-YS71M4,SFA67-YS80M4,SFA67-YS90M4,SFA67-YVB100M4,SFA67-YVB112M4,SFA67-YVB132M4,SFA67-YVB63M4,SFA67-YVB71M4,SFA67-YVB80M4,SFA67-YVB90M4,SFA67-YVP100M4,SFA67-YVP112M4,SFA67-YVP132M4,SFA67-YVP63M4,SFA67-YVP71M4,SFA67-YVP80M4,SFA67-YVP90M4,SFA67-YVPEJ100M4,SFA67-YVPEJ112M4,SFA67-YVPEJ132M4,SFA67-YVPEJ63M4,SFA67-YVPEJ71M4,SFA67-YVPEJ80M4,SFA67-YVPEJ90M4,NFA67-Y0.18KW,NFA67-Y0.25KW,NFA67-Y0.37KW,NFA67-Y0.55KW,NFA67-Y0.75KW,NFA67-Y1.1KW,NFA67-Y1.5KW,NFA67-Y100M4,NFA67-Y112M4,NFA67-Y132M4,NFA67-Y2.2KW,NFA67-Y3KW,NFA67-Y4KW,NFA67-Y5.5KW,NFA67-Y63M4,NFA67-Y71M4,NFA67-Y80M4,NFA67-Y90M4,NFA67-YB100M4,NFA67-YB112M4,NFA67-YB132M4,NFA67-YB63M4,NFA67-YB71M4,NFA67-YB80M4,NFA67-YB90M4,NFA67-YDP100M4,NFA67-YDP112M4,NFA67-YDP132M4,NFA67-YDP63M4,NFA67-YDP71M4,NFA67-YDP80M4,NFA67-YDP90M4,NFA67-YE100M4,NFA67-YE112M4,NFA67-YE132M4,NFA67-YE63M4,NFA67-YE71M4,NFA67-YE80M4,NFA67-YE90M4,NFA67-YEJ100M4,NFA67-YEJ112M4,NFA67-YEJ132M4,NFA67-YEJ63M4,NFA67-YEJ71M4,NFA67-YEJ80M4,NFA67-YEJ90M4,NFA67-YEJB100M4,NFA67-YEJB112M4,NFA67-YEJB132M4,NFA67-YEJB63M4,NFA67-YEJB71M4,NFA67-YEJB80M4,NFA67-YEJB90M4,NFA67-YP100M4,NFA67-YP112M4,NFA67-YP132M4,NFA67-YP63M4,NFA67-YP71M4,NFA67-YP80M4,NFA67-YP90M4,NFA67-YPB100M4,NFA67-YPB112M4,NFA67-YPB132M4,NFA67-YPB63M4,NFA67-YPB71M4,NFA67-YPB80M4,NFA67-YPB90M4,NFA67-YPE100M4,NFA67-YPE112M4,NFA67-YPE132M4,NFA67-YPE63M4,NFA67-YPE71M4,NFA67-YPE80M4,NFA67-YPE90M4,NFA67-YS100M4,NFA67-YS112M4,NFA67-YS132M4,NFA67-YS63M4,NFA67-YS71M4,NFA67-YS80M4,NFA67-YS90M4,NFA67-YVB100M4,NFA67-YVB112M4,NFA67-YVB132M4,NFA67-YVB63M4,NFA67-YVB71M4,NFA67-YVB80M4,NFA67-YVB90M4,NFA67-YVP100M4,NFA67-YVP112M4,NFA67-YVP132M4,NFA67-YVP63M4,NFA67-YVP71M4,NFA67-YVP80M4,NFA67-YVP90M4,NFA67-YVPEJ100M4,NFA67-YVPEJ112M4,NFA67-YVPEJ132M4,NFA67-YVPEJ63M4,NFA67-YVPEJ71M4,NFA67-YVPEJ80M4,NFA67-YVPEJ90M4,AFA67-Y0.18KW,AFA67-Y0.25KW,AFA67-Y0.37KW,AFA67-Y0.55KW,AFA67-Y0.75KW,AFA67-Y1.1KW,AFA67-Y1.5KW,AFA67-Y100M4,AFA67-Y112M4,AFA67-Y132M4,AFA67-Y2.2KW,AFA67-Y3KW,AFA67-Y4KW,AFA67-Y5.5KW,AFA67-Y63M4,AFA67-Y71M4,AFA67-Y80M4,AFA67-Y90M4,AFA67-YB100M4,AFA67-YB112M4,AFA67-YB132M4,AFA67-YB63M4,AFA67-YB71M4,AFA67-YB80M4,AFA67-YB90M4,AFA67-YDP100M4,AFA67-YDP112M4,AFA67-YDP132M4,AFA67-YDP63M4,AFA67-YDP71M4,AFA67-YDP80M4,AFA67-YDP90M4,AFA67-YE100M4,AFA67-YE112M4,AFA67-YE132M4,AFA67-YE63M4,AFA67-YE71M4,AFA67-YE80M4,AFA67-YE90M4,AFA67-YEJ100M4,AFA67-YEJ112M4,AFA67-YEJ132M4,AFA67-YEJ63M4,AFA67-YEJ71M4,AFA67-YEJ80M4,AFA67-YEJ90M4,AFA67-YEJB100M4,AFA67-YEJB112M4,AFA67-YEJB132M4,AFA67-YEJB63M4,AFA67-YEJB71M4,AFA67-YEJB80M4,AFA67-YEJB90M4,AFA67-YP100M4,AFA67-YP112M4,AFA67-YP132M4,AFA67-YP63M4,AFA67-YP71M4,AFA67-YP80M4,AFA67-YP90M4,AFA67-YPB100M4,AFA67-YPB112M4,AFA67-YPB132M4,AFA67-YPB63M4,AFA67-YPB71M4,AFA67-YPB80M4,AFA67-YPB90M4,AFA67-YPE100M4,AFA67-YPE112M4,AFA67-YPE132M4,AFA67-YPE63M4,AFA67-YPE71M4,AFA67-YPE80M4,AFA67-YPE90M4,AFA67-YS100M4,AFA67-YS112M4,AFA67-YS132M4,AFA67-YS63M4,AFA67-YS71M4,AFA67-YS80M4,AFA67-YS90M4,AFA67-YVB100M4,AFA67-YVB112M4,AFA67-YVB132M4,AFA67-YVB63M4,AFA67-YVB71M4,AFA67-YVB80M4,AFA67-YVB90M4,AFA67-YVP100M4,AFA67-YVP112M4,AFA67-YVP132M4,AFA67-YVP63M4,AFA67-YVP71M4,AFA67-YVP80M4,AFA67-YVP90M4,AFA67-YVPEJ100M4,AFA67-YVPEJ112M4,AFA67-YVPEJ132M4,AFA67-YVPEJ63M4,AFA67-YVPEJ71M4,AFA67-YVPEJ80M4,AFA67-YVPEJ90M4,GFA69-Y0.18KW,GFA69-Y0.25KW,GFA69-Y0.37KW,GFA69-Y0.55KW,GFA69-Y0.75KW,GFA69-Y1.1KW,GFA69-Y1.5KW,GFA69-Y100M4,GFA69-Y112M4,GFA69-Y132M4,GFA69-Y2.2KW,GFA69-Y3KW,GFA69-Y4KW,GFA69-Y5.5KW,GFA69-Y63M4,GFA69-Y71M4,GFA69-Y80M4,GFA69-Y90M4,GFA69-YB100M4,GFA69-YB112M4,GFA69-YB132M4,GFA69-YB63M4,GFA69-YB71M4,GFA69-YB80M4,GFA69-YB90M4,GFA69-YDP100M4,GFA69-YDP112M4,GFA69-YDP132M4,GFA69-YDP63M4,GFA69-YDP71M4,GFA69-YDP80M4,GFA69-YDP90M4,GFA69-YE100M4,GFA69-YE112M4,GFA69-YE132M4,GFA69-YE63M4,GFA69-YE71M4,GFA69-YE80M4,GFA69-YE90M4,GFA69-YEJ100M4,GFA69-YEJ112M4,GFA69-YEJ132M4,GFA69-YEJ63M4,GFA69-YEJ71M4,GFA69-YEJ80M4,GFA69-YEJ90M4,GFA69-YEJB100M4,GFA69-YEJB112M4,GFA69-YEJB132M4,GFA69-YEJB63M4,GFA69-YEJB71M4,GFA69-YEJB80M4,GFA69-YEJB90M4,GFA69-YP100M4,GFA69-YP112M4,GFA69-YP132M4,GFA69-YP63M4,GFA69-YP71M4,GFA69-YP80M4,GFA69-YP90M4,GFA69-YPB100M4,GFA69-YPB112M4,GFA69-YPB132M4,GFA69-YPB63M4,GFA69-YPB71M4,GFA69-YPB80M4,GFA69-YPB90M4,GFA69-YPE100M4,GFA69-YPE112M4,GFA69-YPE132M4,GFA69-YPE63M4,GFA69-YPE71M4,GFA69-YPE80M4,GFA69-YPE90M4,GFA69-YS100M4,GFA69-YS112M4,GFA69-YS132M4,GFA69-YS63M4,GFA69-YS71M4,GFA69-YS80M4,GFA69-YS90M4,GFA69-YVB100M4,GFA69-YVB112M4,GFA69-YVB132M4,GFA69-YVB63M4,GFA69-YVB71M4,GFA69-YVB80M4,GFA69-YVB90M4,GFA69-YVP100M4,GFA69-YVP112M4,GFA69-YVP132M4,GFA69-YVP63M4,GFA69-YVP71M4,GFA69-YVP80M4,GFA69-YVP90M4,GFA69-YVPEJ100M4,GFA69-YVPEJ112M4,GFA69-YVPEJ132M4,GFA69-YVPEJ63M4,GFA69-YVPEJ71M4,GFA69-YVPEJ80M4,GFA69-YVPEJ90M4。

FA69減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-faxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:F69減速機

關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家

FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機

FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   FA69減速機 FA67減速機結構圖 FA67減速機數模 FA67減速機樣本 FA67減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA69減速機數模 點擊下載
FA69減速機樣本 點擊下載
