FA129減速機詳細信息

prevnext

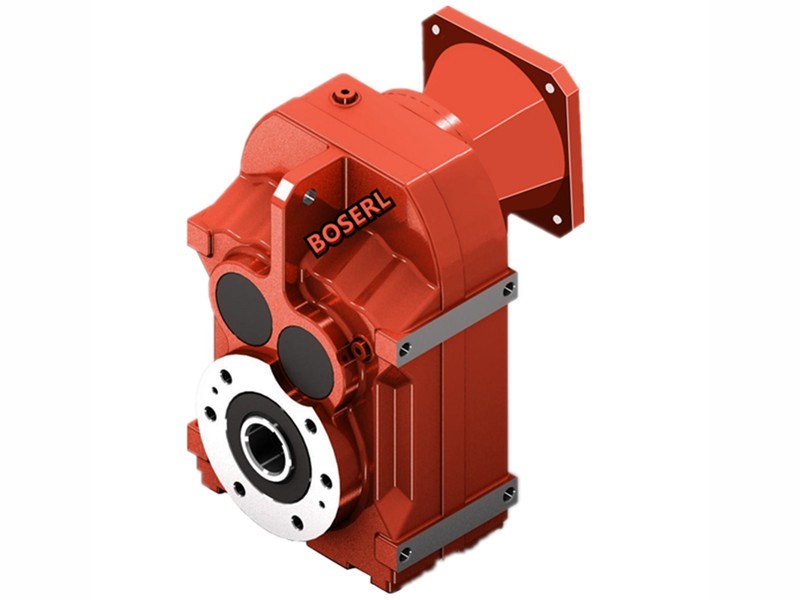

FA129減速機

訂購熱線:13360667204
  1. 詳細信息

FA129減速機銘牌參數說明解讀含義:有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F129減速機選型樣本。

FA129-YP30KW-4P-37.28-M6-0°

FA:系列代號

129:減速機規格代號

YP:電機

30KW:電機功率

4P:電機級數

37.28:減速機傳動比

M6:減速機安裝位置

0°:接線盒位置


FA129減速機扭力臂安裝:

請按以下步驟安裝橡膠緩沖塊:1.根據下表采用螺栓[1]和墊片[2];2.用兩個螺母[3]緊固螺栓;3.擰緊螺栓,直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA129減速機的扭力臂安裝示意圖:齒輪減速電機


減速機型號

直 徑

a[mm]

橡膠緩沖塊

內徑b[mm]

長   度

(未張緊)d[mm]

墊片寬度

c[mm]

△L(張緊)

[mm]

FA39減速機

40

12.5

20

5

1

FA49減速機

40

12.5

20

5

1.5

FA59減速機

40

12.5

20

5

1.5

FA69減速機

40

12.5

20

5

1.5

FA79減速機

60

21

30

10

1.5

FA89減速機

60

21

30

10

1.5

FA99減速機

80

25

40

12

2

FA109減速機

80

25

40

12

2

FA129減速機

100

32

60

15

2

FA159減速機

120

32

60

15

2

FA129減速機電機安裝和電機安裝位置的調整:

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA129減速機的位置調整到最低,則在必要情況下可以拆除吊裝螺栓/吊耳;對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸,將輸入部件、軸端與電機軸的位置相互校正;如果必要可以對電機位置進行再次校正。

裝上傳動部件(V型皮帶、鏈條...)并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛,否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機


FA129減速機型號:

WFA127-Y11KW,WFA127-Y132M4,WFA127-Y15KW,WFA127-Y160M4,WFA127-Y18.5KW,WFA127-Y180M4,WFA127-Y200M4,WFA127-Y225M4,WFA127-Y22KW,WFA127-Y250M4,WFA127-Y280M4,WFA127-Y30KW,WFA127-Y37KW,WFA127-Y45KW,WFA127-Y55KW,WFA127-Y7.5KW,WFA127-Y75KW,WFA127-Y90KW,WFA127-YB132M4,WFA127-YB160M4,WFA127-YB180M4,WFA127-YB200M4,WFA127-YB225M4,WFA127-YB250M4,WFA127-YB280M4,WFA127-YDP132M4,WFA127-YDP160M4,WFA127-YDP180M4,WFA127-YDP200M4,WFA127-YDP225M4,WFA127-YDP250M4,WFA127-YDP280M4,WFA127-YE132M4,WFA127-YE160M4,WFA127-YE180M4,WFA127-YE200M4,WFA127-YE225M4,WFA127-YE250M4,WFA127-YE280M4,WFA127-YEJ132M4,WFA127-YEJ160M4,WFA127-YEJ180M4,WFA127-YEJ200M4,WFA127-YEJ225M4,WFA127-YEJ250M4,WFA127-YEJ280M4,WFA127-YEJB132M4,WFA127-YEJB160M4,WFA127-YEJB180M4,WFA127-YEJB200M4,WFA127-YEJB225M4,WFA127-YEJB250M4,WFA127-YEJB280M4,WFA127-YP132M4,WFA127-YP160M4,WFA127-YP180M4,WFA127-YP200M4,WFA127-YP225M4,WFA127-YP250M4,WFA127-YP280M4,WFA127-YPB132M4,WFA127-YPB160M4,WFA127-YPB180M4,WFA127-YPB200M4,WFA127-YPB225M4,WFA127-YPB250M4,WFA127-YPB280M4,WFA127-YPE132M4,WFA127-YPE160M4,WFA127-YPE180M4,WFA127-YPE200M4,WFA127-YPE225M4,WFA127-YPE250M4,WFA127-YPE280M4,WFA127-YS132M4,WFA127-YS160M4,WFA127-YS180M4,WFA127-YS200M4,WFA127-YS225M4,WFA127-YS250M4,WFA127-YS280M4,WFA127-YVB132M4,WFA127-YVB160M4,WFA127-YVB180M4,WFA127-YVB200M4,WFA127-YVB225M4,WFA127-YVB250M4,WFA127-YVB280M4,WFA127-YVP132M4,WFA127-YVP160M4,WFA127-YVP180M4,WFA127-YVP200M4,WFA127-YVP225M4,WFA127-YVP250M4,WFA127-YVP280M4,WFA127-YVPEJ132M4,WFA127-YVPEJ160M4,WFA127-YVPEJ180M4,WFA127-YVPEJ200M4,WFA127-YVPEJ225M4,WFA127-YVPEJ250M4,WFA127-YVPEJ280M4,SFA127-Y11KW,SFA127-Y132M4,SFA127-Y15KW,SFA127-Y160M4,SFA127-Y18.5KW,SFA127-Y180M4,SFA127-Y200M4,SFA127-Y225M4,SFA127-Y22KW,SFA127-Y250M4,SFA127-Y280M4,SFA127-Y30KW,SFA127-Y37KW,SFA127-Y45KW,SFA127-Y55KW,SFA127-Y7.5KW,SFA127-Y75KW,SFA127-Y90KW,SFA127-YB132M4,SFA127-YB160M4,SFA127-YB180M4,SFA127-YB200M4,SFA127-YB225M4,SFA127-YB250M4,SFA127-YB280M4,SFA127-YDP132M4,SFA127-YDP160M4,SFA127-YDP180M4,SFA127-YDP200M4,SFA127-YDP225M4,SFA127-YDP250M4,SFA127-YDP280M4,SFA127-YE132M4,SFA127-YE160M4,SFA127-YE180M4,SFA127-YE200M4,SFA127-YE225M4,SFA127-YE250M4,SFA127-YE280M4,SFA127-YEJ132M4,SFA127-YEJ160M4,SFA127-YEJ180M4,SFA127-YEJ200M4,SFA127-YEJ225M4,SFA127-YEJ250M4,SFA127-YEJ280M4,SFA127-YEJB132M4,SFA127-YEJB160M4,SFA127-YEJB180M4,SFA127-YEJB200M4,SFA127-YEJB225M4,SFA127-YEJB250M4,SFA127-YEJB280M4,SFA127-YP132M4,SFA127-YP160M4,SFA127-YP180M4,SFA127-YP200M4,SFA127-YP225M4,SFA127-YP250M4,SFA127-YP280M4,SFA127-YPB132M4,SFA127-YPB160M4,SFA127-YPB180M4,SFA127-YPB200M4,SFA127-YPB225M4,SFA127-YPB250M4,SFA127-YPB280M4,SFA127-YPE132M4,SFA127-YPE160M4,SFA127-YPE180M4,SFA127-YPE200M4,SFA127-YPE225M4,SFA127-YPE250M4,SFA127-YPE280M4,SFA127-YS132M4,SFA127-YS160M4,SFA127-YS180M4,SFA127-YS200M4,SFA127-YS225M4,SFA127-YS250M4,SFA127-YS280M4,SFA127-YVB132M4,SFA127-YVB160M4,SFA127-YVB180M4,SFA127-YVB200M4,SFA127-YVB225M4,SFA127-YVB250M4,SFA127-YVB280M4,SFA127-YVP132M4,SFA127-YVP160M4,SFA127-YVP180M4,SFA127-YVP200M4,SFA127-YVP225M4,SFA127-YVP250M4,SFA127-YVP280M4,SFA127-YVPEJ132M4,SFA127-YVPEJ160M4,SFA127-YVPEJ180M4,SFA127-YVPEJ200M4,SFA127-YVPEJ225M4,SFA127-YVPEJ250M4,SFA127-YVPEJ280M4,NFA127-Y11KW,NFA127-Y132M4,NFA127-Y15KW,NFA127-Y160M4,NFA127-Y18.5KW,NFA127-Y180M4,NFA127-Y200M4,NFA127-Y225M4,NFA127-Y22KW,NFA127-Y250M4,NFA127-Y280M4,NFA127-Y30KW,NFA127-Y37KW,NFA127-Y45KW,NFA127-Y55KW,NFA127-Y7.5KW,NFA127-Y75KW,NFA127-Y90KW,NFA127-YB132M4,NFA127-YB160M4,NFA127-YB180M4,NFA127-YB200M4,NFA127-YB225M4,NFA127-YB250M4,NFA127-YB280M4,NFA127-YDP132M4,NFA127-YDP160M4,NFA127-YDP180M4,NFA127-YDP200M4,NFA127-YDP225M4,NFA127-YDP250M4,NFA127-YDP280M4,NFA127-YE132M4,NFA127-YE160M4,NFA127-YE180M4,NFA127-YE200M4,NFA127-YE225M4,NFA127-YE250M4,NFA127-YE280M4,NFA127-YEJ132M4,NFA127-YEJ160M4,NFA127-YEJ180M4,NFA127-YEJ200M4,NFA127-YEJ225M4,NFA127-YEJ250M4,NFA127-YEJ280M4,NFA127-YEJB132M4,NFA127-YEJB160M4,NFA127-YEJB180M4,NFA127-YEJB200M4,NFA127-YEJB225M4,NFA127-YEJB250M4,NFA127-YEJB280M4,NFA127-YP132M4,NFA127-YP160M4,NFA127-YP180M4,NFA127-YP200M4,NFA127-YP225M4,NFA127-YP250M4,NFA127-YP280M4,NFA127-YPB132M4,NFA127-YPB160M4,NFA127-YPB180M4,NFA127-YPB200M4,NFA127-YPB225M4,NFA127-YPB250M4,NFA127-YPB280M4,NFA127-YPE132M4,NFA127-YPE160M4,NFA127-YPE180M4,NFA127-YPE200M4,NFA127-YPE225M4,NFA127-YPE250M4,NFA127-YPE280M4,NFA127-YS132M4,NFA127-YS160M4,NFA127-YS180M4,NFA127-YS200M4,NFA127-YS225M4,NFA127-YS250M4,NFA127-YS280M4,NFA127-YVB132M4,NFA127-YVB160M4,NFA127-YVB180M4,NFA127-YVB200M4,NFA127-YVB225M4,NFA127-YVB250M4,NFA127-YVB280M4,NFA127-YVP132M4,NFA127-YVP160M4,NFA127-YVP180M4,NFA127-YVP200M4,NFA127-YVP225M4,NFA127-YVP250M4,NFA127-YVP280M4,NFA127-YVPEJ132M4,NFA127-YVPEJ160M4,NFA127-YVPEJ180M4,NFA127-YVPEJ200M4,NFA127-YVPEJ225M4,NFA127-YVPEJ250M4,NFA127-YVPEJ280M4,AFA127-Y11KW,AFA127-Y132M4,AFA127-Y15KW,AFA127-Y160M4,AFA127-Y18.5KW,AFA127-Y180M4,AFA127-Y200M4,AFA127-Y225M4,AFA127-Y22KW,AFA127-Y250M4,AFA127-Y280M4,AFA127-Y30KW,AFA127-Y37KW,AFA127-Y45KW,AFA127-Y55KW,AFA127-Y7.5KW,AFA127-Y75KW,AFA127-Y90KW,AFA127-YB132M4,AFA127-YB160M4,AFA127-YB180M4,AFA127-YB200M4,AFA127-YB225M4,AFA127-YB250M4,AFA127-YB280M4,AFA127-YDP132M4,AFA127-YDP160M4,AFA127-YDP180M4,AFA127-YDP200M4,AFA127-YDP225M4,AFA127-YDP250M4,AFA127-YDP280M4,AFA127-YE132M4,AFA127-YE160M4,AFA127-YE180M4,AFA127-YE200M4,AFA127-YE225M4,AFA127-YE250M4,AFA127-YE280M4,AFA127-YEJ132M4,AFA127-YEJ160M4,AFA127-YEJ180M4,AFA127-YEJ200M4,AFA127-YEJ225M4,AFA127-YEJ250M4,AFA127-YEJ280M4,AFA127-YEJB132M4,AFA127-YEJB160M4,AFA127-YEJB180M4,AFA127-YEJB200M4,AFA127-YEJB225M4,AFA127-YEJB250M4,AFA127-YEJB280M4,AFA127-YP132M4,AFA127-YP160M4,AFA127-YP180M4,AFA127-YP200M4,AFA127-YP225M4,AFA127-YP250M4,AFA127-YP280M4,AFA127-YPB132M4,AFA127-YPB160M4,AFA127-YPB180M4,AFA127-YPB200M4,AFA127-YPB225M4,AFA127-YPB250M4,AFA127-YPB280M4,AFA127-YPE132M4,AFA127-YPE160M4,AFA127-YPE180M4,AFA127-YPE200M4,AFA127-YPE225M4,AFA127-YPE250M4,AFA127-YPE280M4,AFA127-YS132M4,AFA127-YS160M4,AFA127-YS180M4,AFA127-YS200M4,AFA127-YS225M4,AFA127-YS250M4,AFA127-YS280M4,AFA127-YVB132M4,AFA127-YVB160M4,AFA127-YVB180M4,AFA127-YVB200M4,AFA127-YVB225M4,AFA127-YVB250M4,AFA127-YVB280M4,AFA127-YVP132M4,AFA127-YVP160M4,AFA127-YVP180M4,AFA127-YVP200M4,AFA127-YVP225M4,AFA127-YVP250M4,AFA127-YVP280M4,AFA127-YVPEJ132M4,AFA127-YVPEJ160M4,AFA127-YVPEJ180M4,AFA127-YVPEJ200M4,AFA127-YVPEJ225M4,AFA127-YVPEJ250M4,AFA127-YVPEJ280M4,GFA129-Y11KW,GFA129-Y132M4,GFA129-Y15KW,GFA129-Y160M4,GFA129-Y18.5KW,GFA129-Y180M4,GFA129-Y200M4,GFA129-Y225M4,GFA129-Y22KW,GFA129-Y250M4,GFA129-Y280M4,GFA129-Y30KW,GFA129-Y37KW,GFA129-Y45KW,GFA129-Y55KW,GFA129-Y7.5KW,GFA129-Y75KW,GFA129-Y90KW,GFA129-YB132M4,GFA129-YB160M4,GFA129-YB180M4,GFA129-YB200M4,GFA129-YB225M4,GFA129-YB250M4,GFA129-YB280M4,GFA129-YDP132M4,GFA129-YDP160M4,GFA129-YDP180M4,GFA129-YDP200M4,GFA129-YDP225M4,GFA129-YDP250M4,GFA129-YDP280M4,GFA129-YE132M4,GFA129-YE160M4,GFA129-YE180M4,GFA129-YE200M4,GFA129-YE225M4,GFA129-YE250M4,GFA129-YE280M4,GFA129-YEJ132M4,GFA129-YEJ160M4,GFA129-YEJ180M4,GFA129-YEJ200M4,GFA129-YEJ225M4,GFA129-YEJ250M4,GFA129-YEJ280M4,GFA129-YEJB132M4,GFA129-YEJB160M4,GFA129-YEJB180M4,GFA129-YEJB200M4,GFA129-YEJB225M4,GFA129-YEJB250M4,GFA129-YEJB280M4,GFA129-YP132M4,GFA129-YP160M4,GFA129-YP180M4,GFA129-YP200M4,GFA129-YP225M4,GFA129-YP250M4,GFA129-YP280M4,GFA129-YPB132M4,GFA129-YPB160M4,GFA129-YPB180M4,GFA129-YPB200M4,GFA129-YPB225M4,GFA129-YPB250M4,GFA129-YPB280M4,GFA129-YPE132M4,GFA129-YPE160M4,GFA129-YPE180M4,GFA129-YPE200M4,GFA129-YPE225M4,GFA129-YPE250M4,GFA129-YPE280M4,GFA129-YS132M4,GFA129-YS160M4,GFA129-YS180M4,GFA129-YS200M4,GFA129-YS225M4,GFA129-YS250M4,GFA129-YS280M4,GFA129-YVB132M4,GFA129-YVB160M4,GFA129-YVB180M4,GFA129-YVB200M4,GFA129-YVB225M4,GFA129-YVB250M4,GFA129-YVB280M4,GFA129-YVP132M4,GFA129-YVP160M4,GFA129-YVP180M4,GFA129-YVP200M4,GFA129-YVP225M4,GFA129-YVP250M4,GFA129-YVP280M4,GFA129-YVPEJ132M4,GFA129-YVPEJ160M4,GFA129-YVPEJ180M4,GFA129-YVPEJ200M4,GFA129-YVPEJ225M4,GFA129-YVPEJ250M4,GFA129-YVPEJ280M4。

FA129減速機生產工廠展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.ymxq888.com/product/list-faxiliejiansuji-cn.html

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

齒輪減速電機一體機

推薦類似型號:F129減速機

關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家

FA系列齒輪減速電機型號:FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機

FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   FA129減速機 FA127減速機結構圖 FA127減速機數模 FA127減速機樣本 FA127減速機規格

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA129減速機數模 點擊下載
FA129減速機樣本 點擊下載
